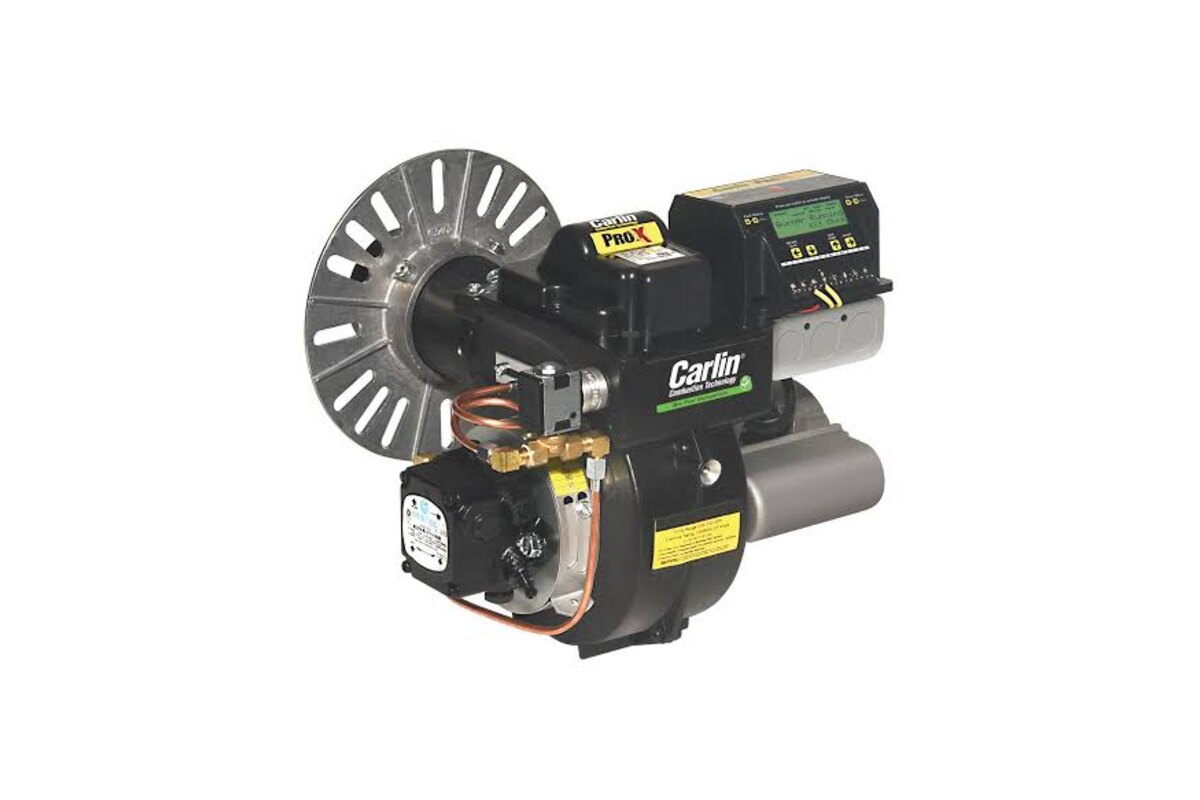

Carlin Oil Burner Repair and Installation, Long Island

Oil Burner Brand

About Carlin Oil Burners

We install, repair and service Carlin oil burners across Long Island and stock the common parts they use. As a heating oil company since 1981, we also check the oil line and filter that feed the burner, since that's where many Carlin lockouts start.

Carlin Combustion Technology, Inc. was founded in 1949. Its site shows a 1967 photo of John Carlberg, Bert Watling and Ben Lindberg under the line 'The American Brand.' The company makes oil and biofuel burners, gas burners, and its own controls and ignitors.

Boiler and furnace makers offer Carlin as a factory burner choice. Thermo Pride lists the Carlin EZ-1HP on its OH6 and OD6 oil furnaces, and Boyertown and Airco furnaces both accept Carlin burners.

Get a Free Quote Today Call (631) 779-3196

All Models Serviced

Model Lineup

Carlin Oil Burner Models We Install and Service

Each current residential Carlin uses the same Pro-X 70200 control, Pro-X 45000 ignitor (19,000 volts) and Suntec 3006 pump, which keeps parts simple across models.

Model	Firing Rate	Fuel Rating (U.S.)	Good For
EZ-1	0.50 to 1.65 GPH	No. 1 or No. 2 oil, biofuel up to B100	Most home boilers and furnaces
EZ-2	1.50 to 2.25 GPH	No. 1 or No. 2 oil, biofuel up to B100	Larger homes
EZ-3	2.00 to 2.50 GPH	No. 1 or No. 2 oil, biofuel up to B100	Big homes and light commercial
Carlin Select	See Carlin spec sheet	No. 1 or No. 2 oil, biofuel up to B100	3-pass boilers and harder applications
99FRD	0.5 to 3.00 GPH	No. 1 or No. 2 oil, biofuel up to B100	Residential to semi-commercial
102CRD	2.00 to 4.50 GPH (by air cone)	No. 1 or No. 2 oil, biofuel up to B100	Semi-commercial boilers

Long Island Homes

Carlin Oil Burners for Long Island Homes

Heating oil on Long Island increasingly carries a biodiesel blend. Carlin calls its EZ burner an all-blends burner that runs No. 2 and B5 through B100, and it says most residential burners built before November 20, 2023 can be converted to B100 using its online guide.

The Pro-X control has built-in alarm contacts. That lets us wire a no-heat alert to a phone or monitoring system, which helps if you're away in January or have a second home on the East End.

Carlin's Select model was built for 3-pass boilers, which push back harder on the burner than older designs. If your newer boiler calls for it, we'll match the head and air settings from Carlin's OEM settings guide.

Warranty

Carlin Oil Burner Warranty

Carlin warrants residential burners and Carlin-brand components for 60 months from the date of manufacture, not the install date. Non-Carlin parts on the burner are covered for 12 months from installation or 18 months from manufacture, whichever comes first.

Coverage requires installation by a qualified technician, licensed where local codes require it, following NFPA 31. Misuse, neglect, accidents and water damage aren't covered. Returns need authorization from Carlin's technical service department.

On top of the manufacturer's coverage, Domino backs every installation with a 1-year labor warranty.

Compare Brands

Carlin vs Riello Oil Burners

Carlin and Riello are the two names we see most next to Beckett on Long Island boilers. Carlin is a U.S. company dating to 1949; Riello is an Italian company founded in 1922 whose 40-Series burners are sold here through Riello America.

Both make residential burners rated for biodiesel up to B100. Carlin shows faults on an LCD screen and offers alarm contacts. Riello's 40-Series has an integrated control with a 10-second prepurge and offers BF balanced flue models for direct venting. The warranty clocks differ too: Carlin's 60 months run from manufacture, while Riello's 60 months run from installation (or 66 from manufacture, whichever comes first).

Repair & Service

Carlin Oil Burner Repair and Service

For oil burner service on Long Island, we carry nozzles, oil filters, electrodes, Pro-X ignitors, Pro-X controls and Suntec pump parts. Common Carlin calls:

Control shows a lockout on the screen: the last-fault alert usually points to flame failure from a clogged nozzle or dirty filter.
Burner motor runs but no flame: a weak Pro-X ignitor or electrodes out of gap.
Burner short-cycles after a fill-up: sludge stirred into the line plugging the filter or nozzle.
Pump noise or lost prime: an air leak at a fitting or a worn Suntec pump.
Heavy soot in the boiler: air settings drifted; needs cleaning and a combustion test.

Installation

Carlin Oil Burner Installation and Replacement

Before choosing, compare the oil burner brands we install. Price depends on the model, the head and air tube your boiler or furnace calls for, oil line or filter changes and any alarm wiring, so call for a quote.

We check your boiler or furnace model against Carlin's OEM settings guide.
We pick the EZ, Select or 99FRD model and head setup.
We install the burner with a new nozzle and oil filter and bleed the line.
We tune air and pump pressure with a combustion analyzer.
We record the settings and show you how to read the Pro-X screen.

FAQ

Carlin Oil Burner FAQs

Common questions about this oil burner brand on Long Island.

1What does the screen on my Carlin burner mean?

It's the Pro-X 70200 control. It shows settings and the last fault, which helps a technician find why the burner locked out.

2Can a Carlin burner burn biodiesel?

Yes. Carlin's residential EZ, Select and 99FRD burners are listed in the U.S. for biofuel blends up to and including B100.

3How long is the Carlin burner warranty?

Residential Carlin burners are warranted for 60 months from the date of manufacture.

4Can my older Carlin burner be upgraded?

Often, yes. Carlin says most residential burners made before November 20, 2023 can be converted to B100 with its conversion guide.

5Can you put a Carlin burner on my existing boiler?

Usually, if your boiler maker lists a Carlin setup for that model. We follow Carlin's OEM settings guide so the head and air match the boiler.

Carlin Oil Burner Installation and Repair on Long Island
